Download
Release
3.13.1
Editor
Tornos SA
Operating System
  • Windows 10 (RAM: >8GB, CPU: >Intel i3, HD: >2GB Free)
  • Windows 11 (RAM: >8GB, CPU: >Intel i3, HD: >2GB Free)

TISIS

Tornos Iso Swiss Integrated Solution

WARNING : Update from version 1.x or 2.x to version 3.0 is billable


IMPORTANT: Compatibility with Motion Control

It is essential to perform the software updates on the machine, i.e. the Connectivity Pack and Motion Control according to the following versions:

  • Connectivity pack: 3.0
  • SwissNano 4 Motion Control: 803
  • SwissNano 4 V2 Motion Control: 1009
  • SwissNano 7 Motion Control: 909
  • SwissDECO 36 G, T & TB Motion Control: 909
  • SwissDECO 36 ISO G & T Motion Control: 1009
  • EvoDECO 10, 16, 20 & 32 Motion Control: 803
  • EvoDECO 10, 16, 20 & 32 Optimove Motion Control : 909
  • SwissXT 16 : Motion Control: 1403
  • Swiss XT 32 : Motion Control:1309
  • Swiss GT 13, GT 26 & GT 32 Motion Control: 803
  • SwissDT 7 & SwissDT 10 Motion Control: 1509
  • SwissDT 13 S Motion Control: 1203
  • SwissDT13 HP Motion Control: 1203
  • Swiss DT 13 & DT 26 Motion Control: 803
  • SwissDT 26 S Motion Control: 909
  • SwissDT 26 S V2 Motion Control: 1203
  • SwissDT 26/5 HP Motion Control: 1109
  • SwissDT 26/6 HP Motion Control: 1209
  • SwissDT 32 HP Motion Control: 1109
  • SwissDT 38 HP Motion Control: 1209
  • SwissST 26 Motion Control: 28M
  • SwissCT 20 Motion Control: 803

Please contact Tornos after-sales service for a motion control update.

TISIS

Novelties

  • SwissDT 7
  • SwissDT 10
  • B axis for SwissXT16 and SwissXT 32
  • Possibility to configure machine groups for monitoring
  • Possibility to define machine variables for part simulation

Improvements

Bugs fixes

  • Bug fix in license view
  • Bug fix in TTFTX import
  • Bug fix on opening multiple TISIS (3.13.1)

Machines

SwissDECO 36TB:

  • Add parameter A3 to the macro G925 (3.13.1)

SwissGT:

  • Bug fix in tool holder : 392621
  • Bug fix in tool holder : 393810
  • Bug fix in tool holder : 393811

SwissGT 26/32:

  • Add tool holder : 2052224

SwissGT B axis:

  • Add tool holder : 396550

SwissDT 7/10:

  • Add tool holder : 590-2533 (3.13.1)
  • Add tool holder : 590-2541 (3.13.1)
  • Add tool holder : 590-2544 (3.13.1)
  • Add tool holder : 2307023 (3.13.1)
  • Bug fix in guidebush management (3.13.1)

EvoDECO:

  • Decode code M704 M9 M0 in TISIS

EvoDECO 16:

  • Add tool holder : 307249

TISIS Pilot

TISIS novelties are included in TISIS Pilot (See above)

Novelties

  • Function to manage machine mode setup / automatic by RFID
  • External corrections for SwissDECO

Improvement

  • Improve performance of variable page view
  • Improve the refresh time in page view
  • Improve the tool page view with huge part program
  • Shortcut F1 and F12

Bug fixes

  • Bug fix in macro debug tool
  • Bug fix of the number of alarm (3.13.1)
  • Bug fix in tool management on opening part (3.13.1)

Features

Transfer of part programs onto the machine via the network (Connectivity Pack Option)

Transfer of tool catalogue (items) onto the machine via the network (Connectivity Pack Option)

PROGRAMMING

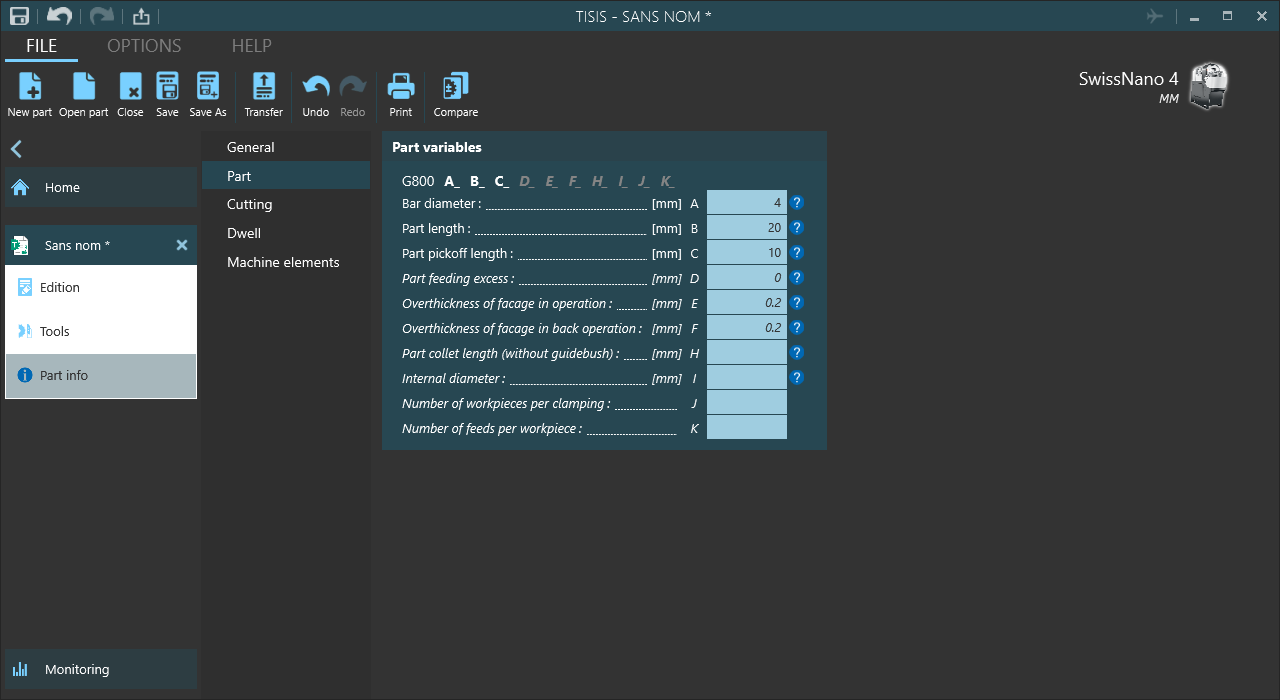

  • Simplified display of part information

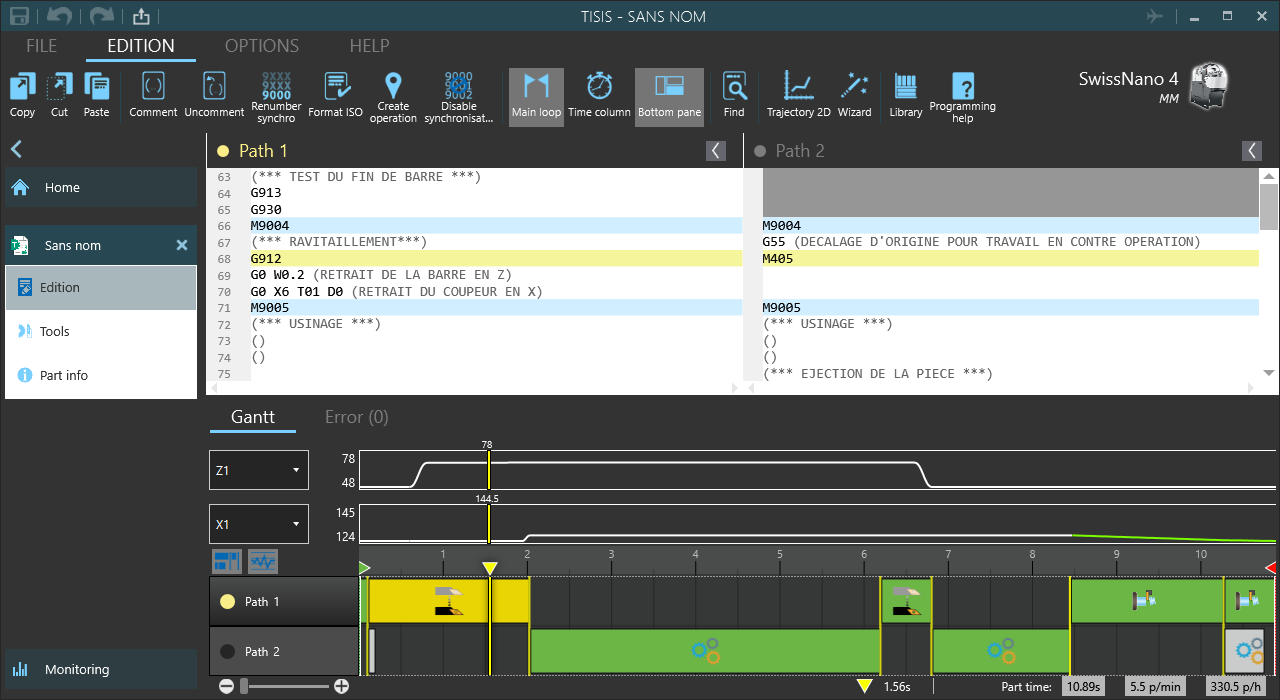

  • Vertical ISO code editor with syntax colouring

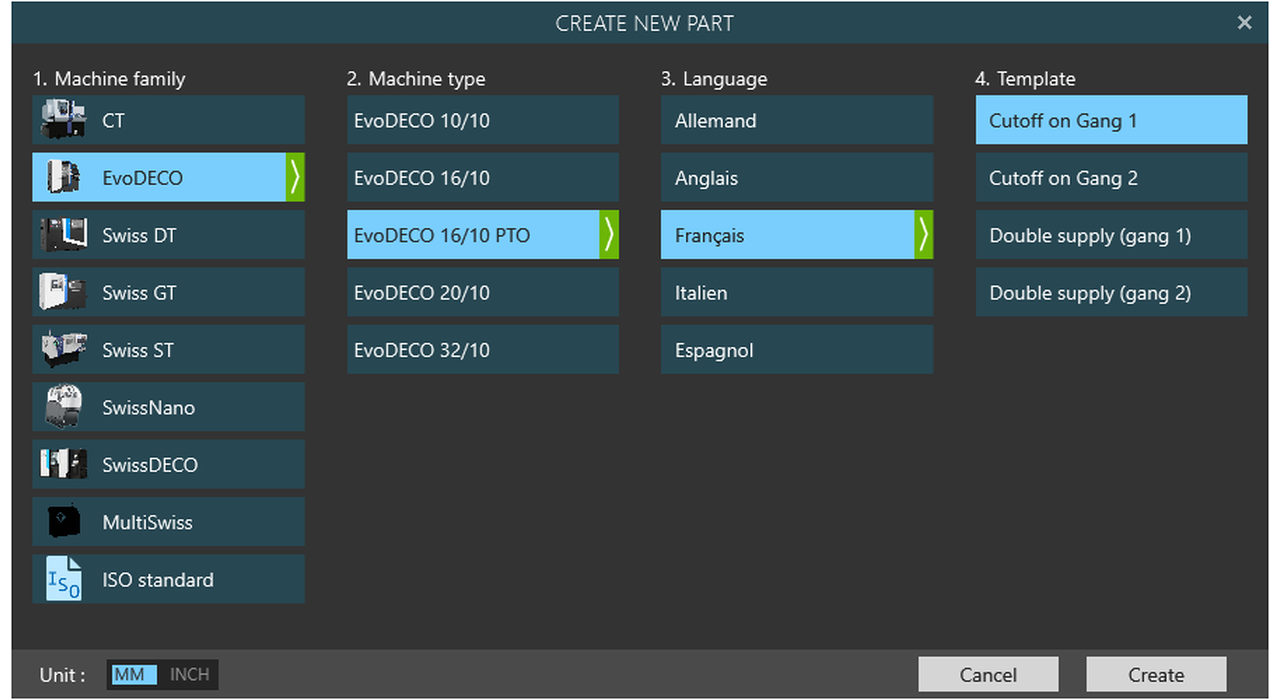

  • Part models and multilingual application
  • Synchronised ISO code display fluidity
  • Checking synchronisation errors
  • Print usual documents
  • File comparator

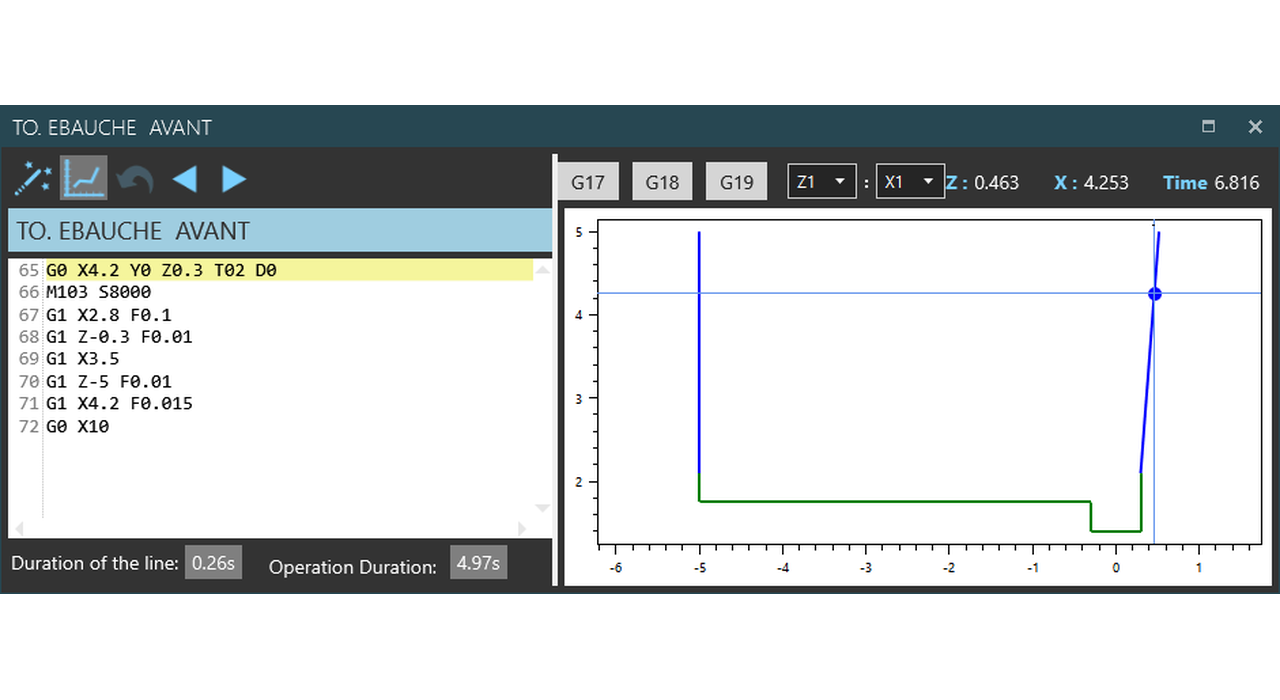

  • Calculation of the part duration and display of the time diagram

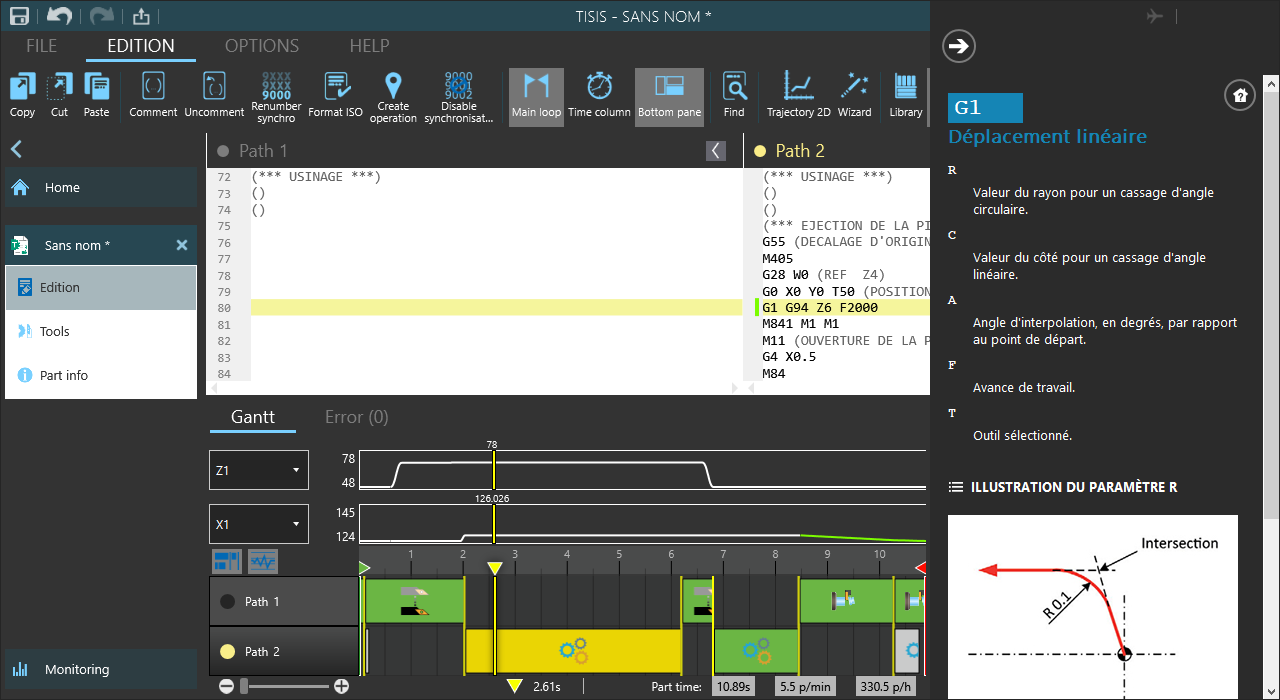

  • Programming help (ISO code)

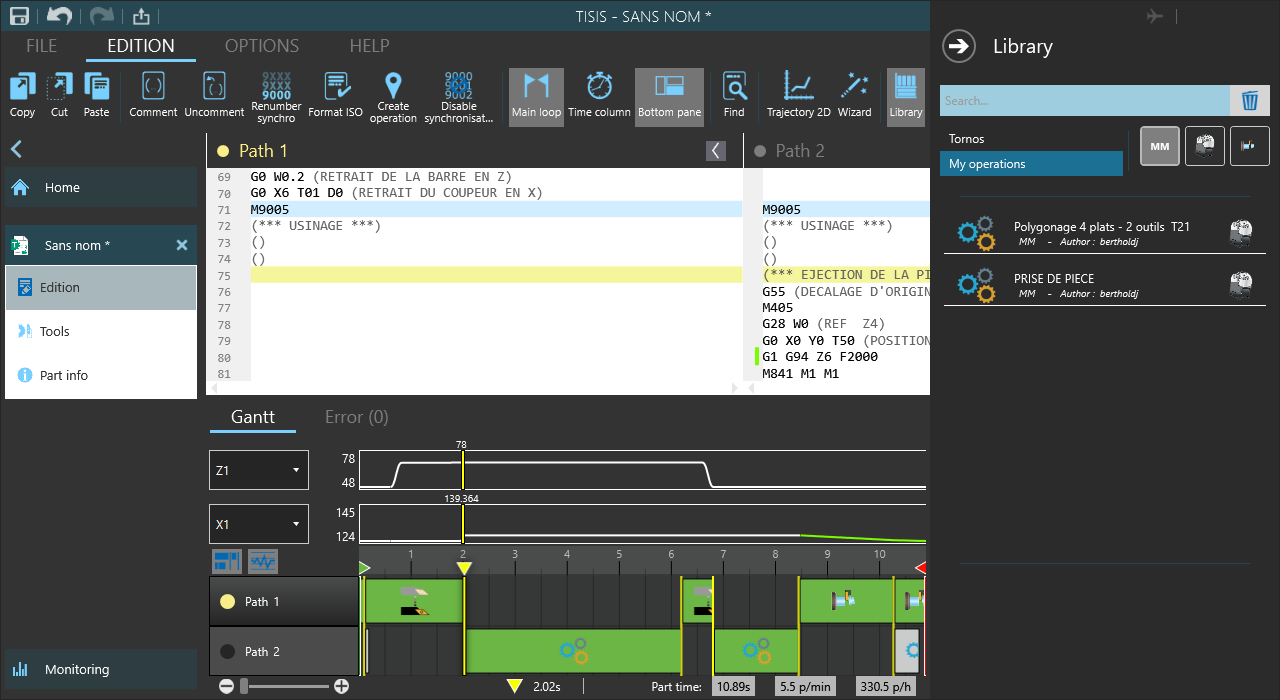

  • Program edition from Gantt diagram

TOOL CATALOG

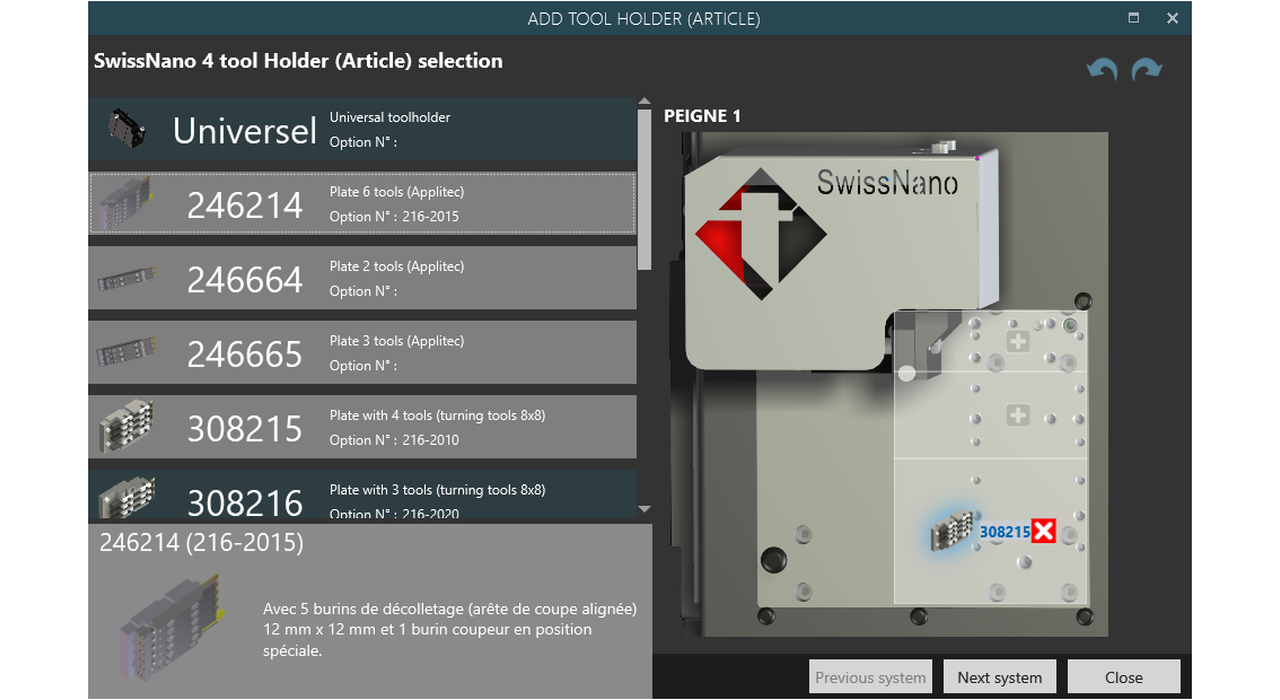

  • Simplified management of items/tool supports with graphical representation
  • Management of item/tool support incompatibilities
  • Default values of tool geometries
  • Simplified view of tools per channel
  • Assured compatibility of tool support (items) files (TAP extension) of machine tools.
  • Addition of new tool supports (items) via TSPK external file(s).

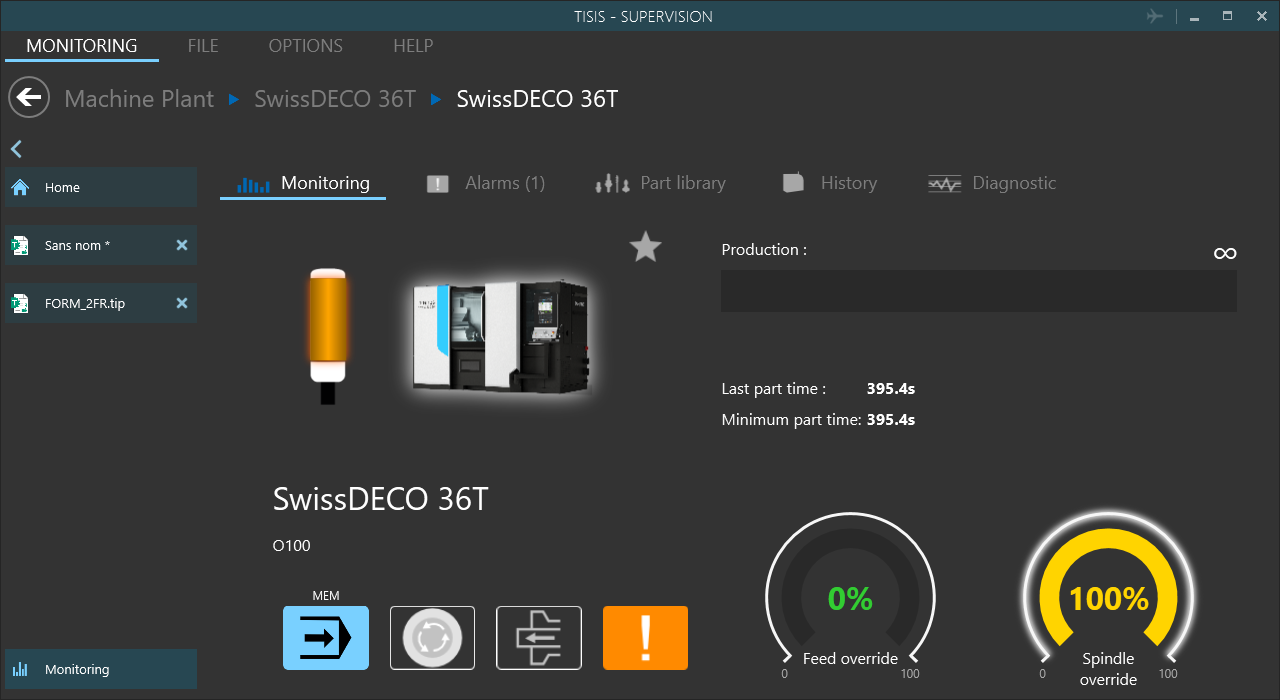

MONITORING (with connectivity pack)

  • View of complete machine fleet according to the machine type with the possibility to sort the displays:
    • Machine status (machine lamp copy)
    • Machines at end of production
  • View of production in progress for each machine:
    • Part counter, remaining production time and part name
    • Alarms and/or active messages
    • Part library with drawing and part op plan, images & documents for setup

PROBLEM(S)

If you had to encounter problem with the TISIS software, please use Tornos Contact

In order to reproduce the problem, we kindly ask you to give as many information as you can.
