TISIS
Tornos Iso Swiss Integrated Solution
WARNING : Update from version 1.x or 2.x to version 3.0 is billable
IMPORTANT: Compatibility with Motion Control
It is essential to perform the software updates on the machine, i.e. the Connectivity Pack and Motion Control according to the following versions:
- Connectivity pack: 3.0
- SwissNano 4 Motion Control: 803
- SwissNano 4 V2 Motion Control: 1009
- SwissNano 7 Motion Control: 909
- Swiss ST26 Motion Control: 28M
- Swiss CT20 Motion Control: 803
- Swiss GT13, GT26 & GT32 Motion Control: 803
- SwissDT13 S Motion Control: 1203
- SwissDT13 HP Motion Control: 1203
- Swiss DT13 & DT26 Motion Control: 803
- SwissDT26S Motion Control: 909
- SwissDT26S V2 Motion Control: 1203
- SwissDT26/5 HP Motion Control: 1109
- SwissDT26/6 HP Motion Control: 1209
- SwissDT32 HP Motion Control: 1109
- SwissDT38 HP Motion Control: 1209
- EvoDECO 10, 16, 20 & 32 Motion Control: 803
- EvoDECO 10,16, 20 & 32 Optimove Motion Control : 909
- SwissDECO 36 G, T & TB Motion Control: 909
- SwissDECO 36 ISO G & T Motion Control: 1009
Please contact Tornos after-sales service for a motion control update.
TISIS
Novelties
- SwissDECO36TB ISO
- Add videos in TISIS Help

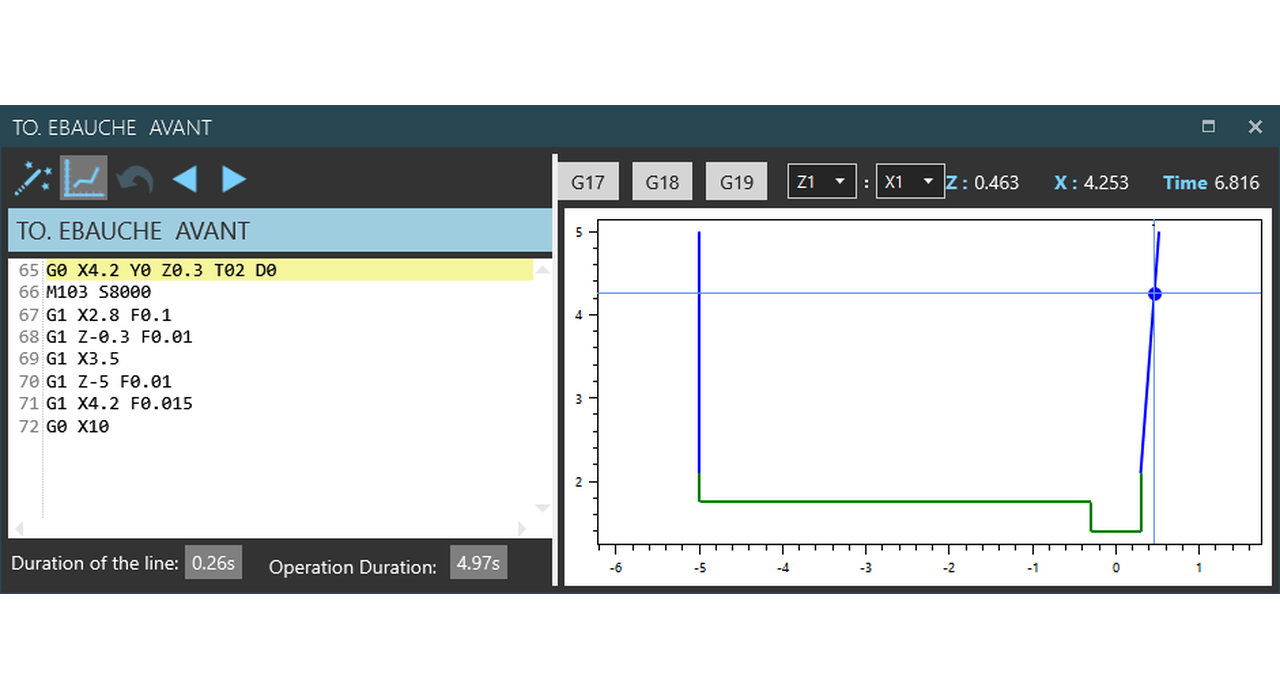

- Possibility to show G41/G42 in 2D simulation
- Add parameter F to tools to limit the torque (DT32 & DT38)
- Monitoring Studer machines (case by case)
- SwissGT13 B axis (V3.9.4)
Improvements
- Improve performance of 2D simulation
- Show description on over for variables #4000
- Possibility to configure the number max of repetition for the while loops
- Add in monitoring : SwissDT13 S, SwissDT13 HP, SwissDT32 ISO A and SwissDT38 ISO A (V3.9.3)
Bugs fixes
- Fix bug in continuous mode
- Fix bug in 5 axis interpolator
- Fix bug in PostPro G971
- Fix bug during creation of new operation in an empty channel
- Fix bug in locking function
- Fix bug in G141 and G142
- Fix bug in TISIS Help
- Fix bug in advanced format ISO for skip /2
- Fix bug of button « transfer sub program » (V3.9.3)
- Fix graphical bug in the 2D simulation (V3.9.3)
- Fix drag&drop of the tool geometries (V3.9.4)
- Fix the size of the window of TISIS Help (V3.9.4)
- Fix the opening of TISIS Help (V3.9.4)
- Fix some bugs in « Settings » view (V3.9.4)
- Fix time estimation in mode G96 (V3.9.4)
Machines
All machines:
- Change in the model the spindle speed during bar feeding
EvoDECO Optimove:
- Fix bug in G978 in chanel 2
EvoDECO32:
- Increase the maximum diameter to 34mm (V3.9.3)
ISO Machines:
- Add parameter B1 to G912 in the models
- Fix bug in macro G947 (V3.9.3)
- Add ratio for rotating tools (V3.9.3)
- Fix ratio of rotating tools (V3.9.4)
SwissDECO36 ISO:
- Add post processing macros
- Add tool article : 235149 (V3.9.3)
- Add tool article : 235154 (V3.9.3)
SwissNano4:
- Bug fix in tool article : 235180 (V3.9.3)
- Bug fix in tool article : 235181 (V3.9.3)
- Bug fix in tool article : 235182 (V3.9.3)
SwissNano7:
- Add tool article : 249137 (V3.9.3)
- Add tool article : 312290 (V3.9.3)
- Add tool article : 498687 (V3.9.3)
SwissNano10:
- Add tool article : 249137 (V3.9.3)
- Fix the limit+ of Z4 (V3.9.4)
SwissDT13 S:
- Turbo model
- Add management of guidebush 3 position (V3.9.4)
- Add tool article : 396198 (V3.9.4)
SwissDT13 HP:
- Fix ratio info for rotating tools (V3.9.3)
- Add tool article : 2052355 (V3.9.4)
SwissDT26 SII:
- Fix ratio info for rotating tools (V3.9.3)
- Add tool article : 2052357 (V3.9.4)
SwissDT32 HP:
- Fix ratio info for rotating tools (V3.9.3)
SwissDT38 HP:
- Turbo model
- Fix ratio info for rotating tools (V3.9.3)
TISIS Pilot
TISIS novelties are included in TISIS Pilot (See above)
Novelties
- Possibility to display alarms as notification
- Display analog spindle information
Improvement
- Improve alarm view
- Improve stability of TISIS Pilot
- Simplify the programming of analog spindles
- Close the part loading Windows in case of error
- Display all axis for free tools measurement
- Display the tool geometries during the machining (ISO only)
- Possibility to use ISO variables Y0000XXX (Optimove)
- Show the right page at the starting (V3.9.3)
- Improve some translation (V3.9.4)
- Improve the format of the date in « Preheat » view (V3.9.4)
Bug fixes
- Fix performance and stability problems
- Fix bug in macro transfert
- Fix bug in screen saver
- Fix bug of Y axis slider in MDI view
- Fix bug in the user rights with badges
- Fix bug in physical tool article
- Fix bug in tool measurement with Z axis
- Fix bug of current line in the main program (ISO only)
- Fix bug of current line in the sub programs (ISO only)
- Fix bug in preheat view (V3.9.3)
- Fix bug in part loading at machine starting (EvoDECO) (V3.9.3)
- Fix bug in progress bar for part loading (ISO only) (V3.9.3)
- Fix bug in tool wears management (V3.9.3)
- Fix bug in the library of MDI operation (V3.9.3)
- Fix bug in restart at block for program with PostPro (V3.9.3)
- Fix bug in tool measurement for SwissDECO36 (V3.9.3)
- Fix the position display in synchronized mode (V3.9.4)
- Fix start in the middle of program (SwissDECO ISO) (V3.9.4)
- Fix Z axis tool presetting (SwissDECO ISO) (V3.9.4)
Features
Transfer of tool catalogue (items) onto the machine via the network (Connectivity Pack Option)
PROGRAMMING

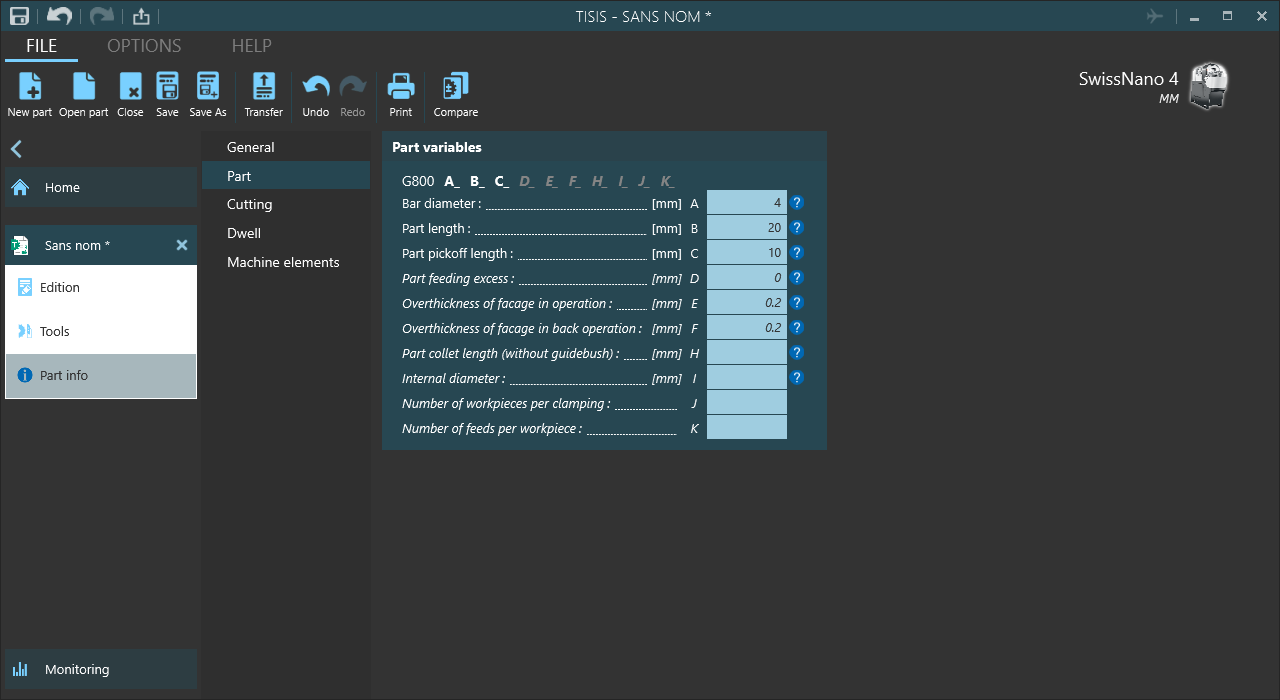

- Simplified display of part information
- Vertical ISO code editor with syntax colouring

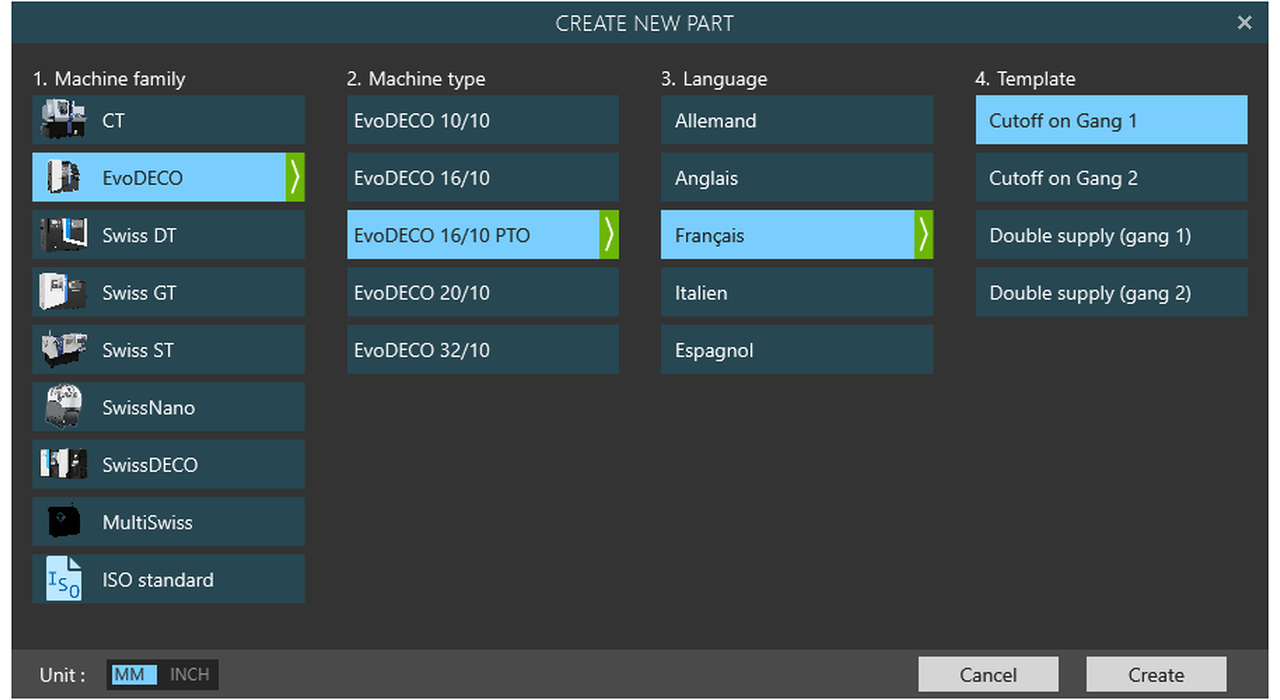

- Part models and multilingual application

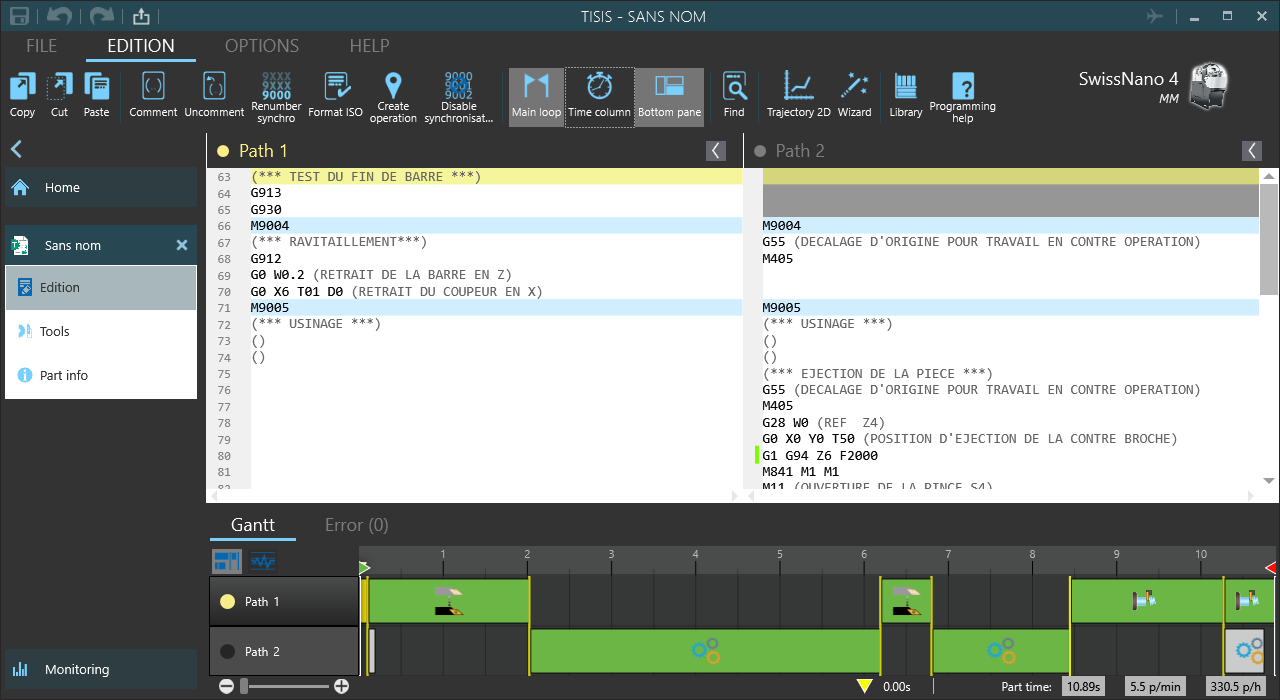

- Synchronised ISO code display fluidity
- Checking synchronisation errors
- Print usual documents
- File comparator
- Calculation of the part duration and display of the time diagram

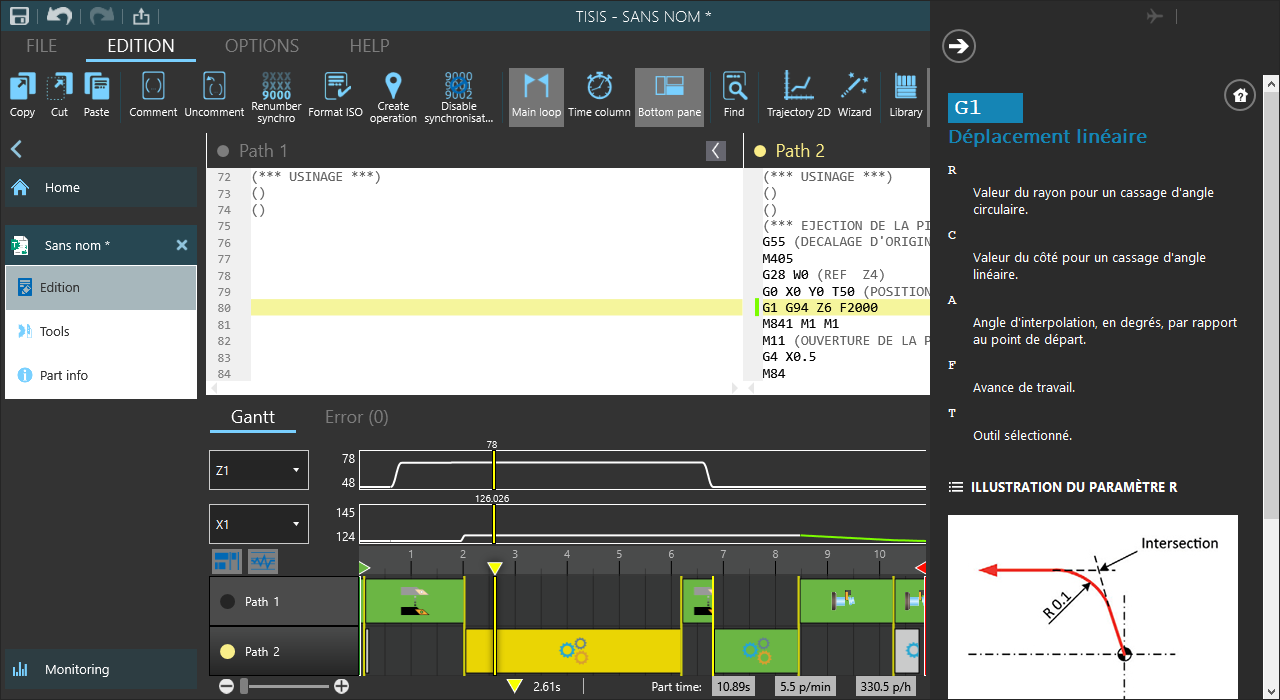

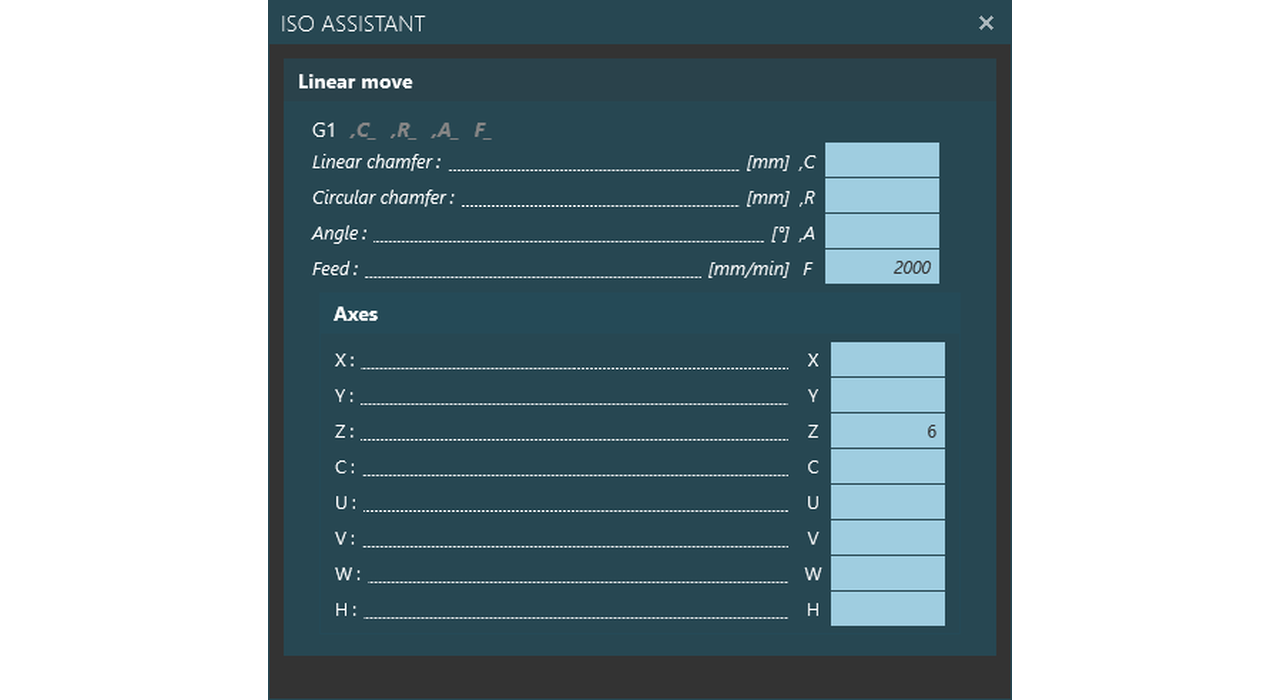

- Programming help (ISO code)

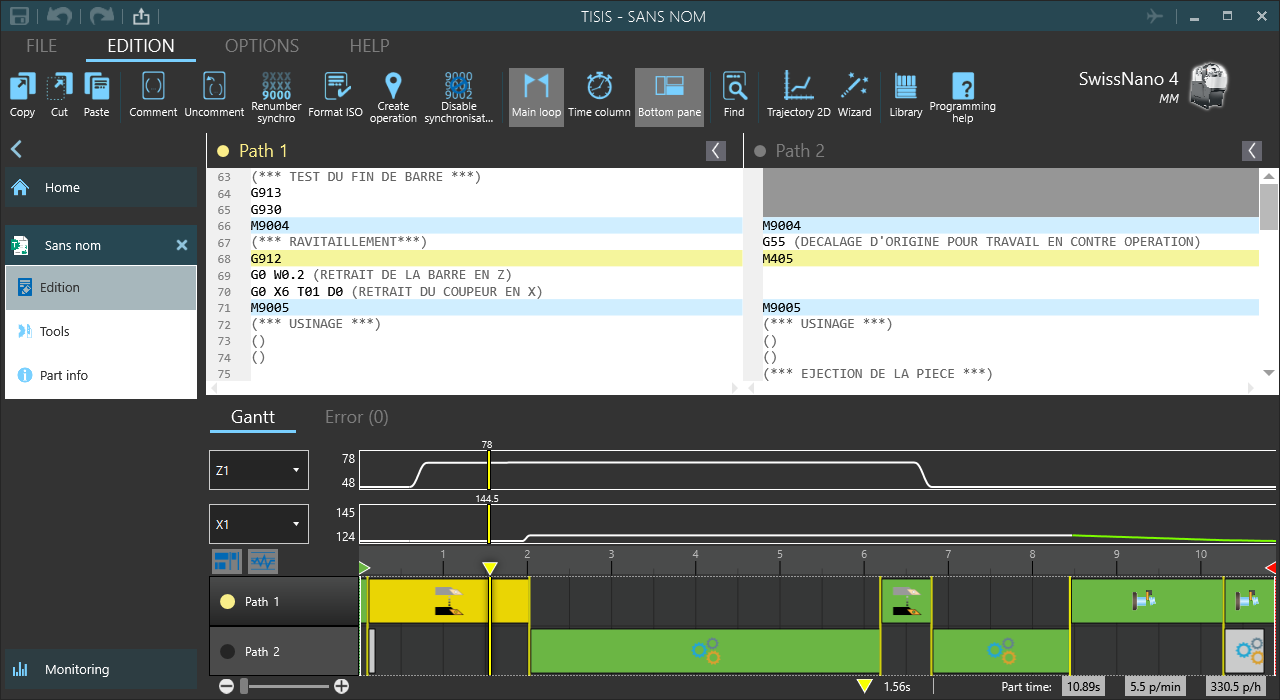

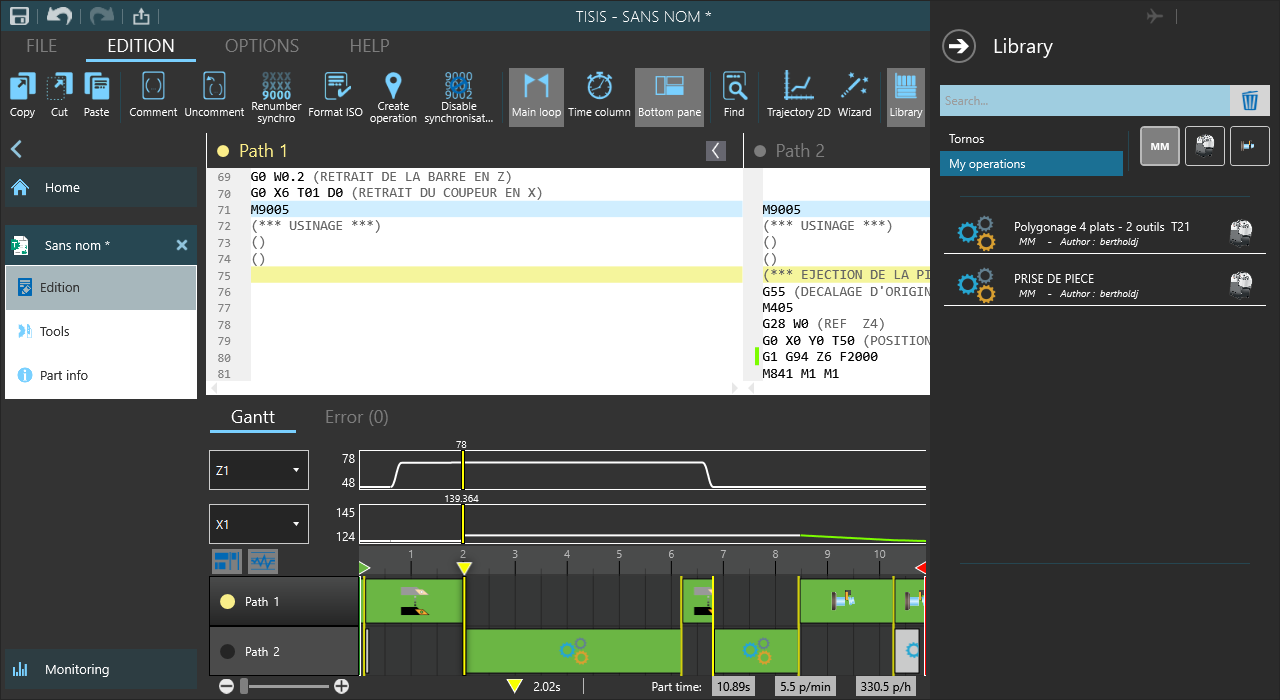

- Program edition from Gantt diagram
TOOL CATALOG

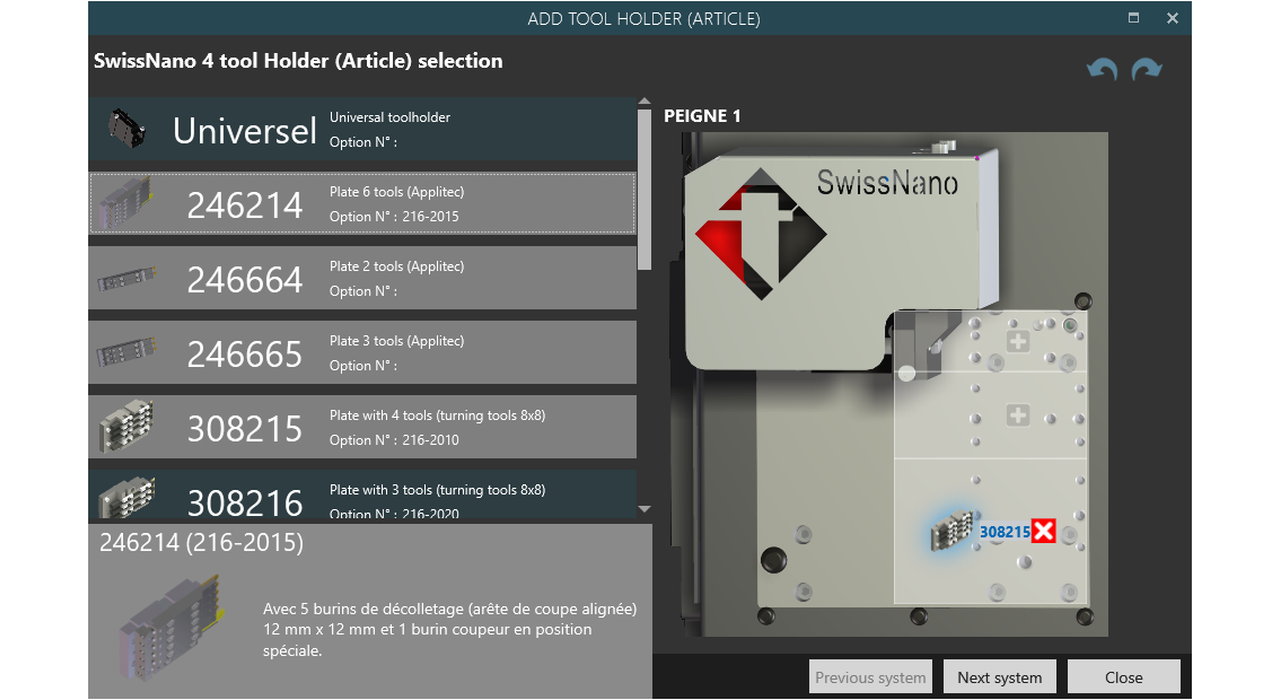

- Simplified management of items/tool supports with graphical representation
- Management of item/tool support incompatibilities
- Default values of tool geometries
- Simplified view of tools per channel
- Assured compatibility of tool support (items) files (TAP extension) of machine tools.
- Addition of new tool supports (items) via TSPK external file(s).

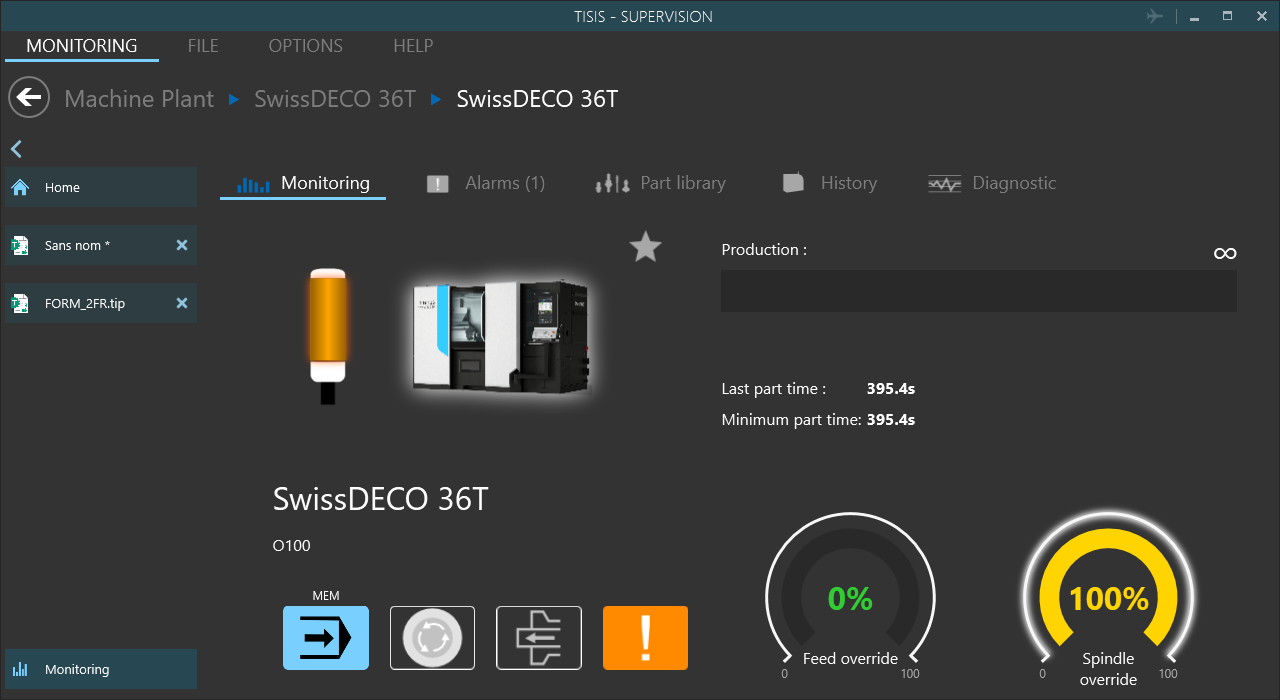

MONITORING (with connectivity pack)

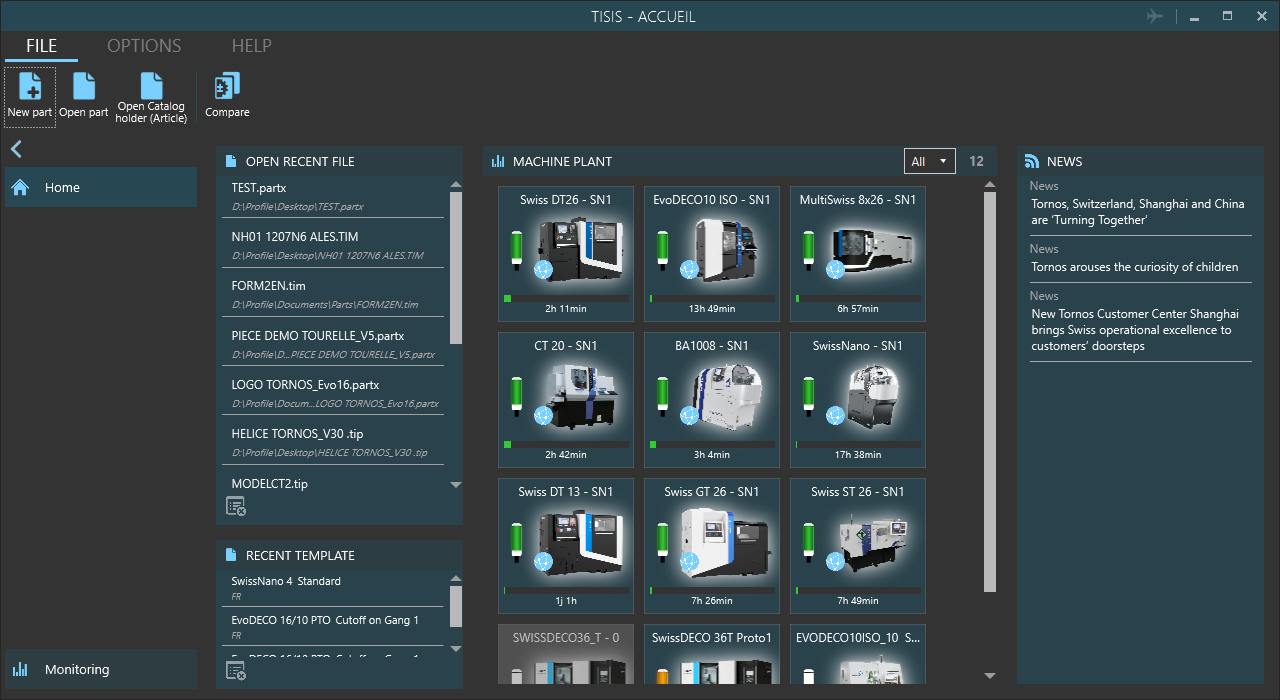

- View of complete machine fleet according to the machine type with the possibility to sort the displays:
- Machine status (machine lamp copy)
- Machines at end of production
- View of production in progress for each machine:
- Part counter, remaining production time and part name
- Alarms and/or active messages
- Part library with drawing and part op plan, images & documents for setup
PROBLEM(S)
If you had to encounter problem with the TISIS software, please use Tornos Contact
In order to reproduce the problem, we kindly ask you to give as many information as you can.
