Release
3.7.0
Editor
Tornos SA
Operating System
  • Windows 8 & 8.1
  • Windows 10
  • Windows 11

TISIS

Tornos Iso Swiss Integrated Solution

WARNING : Update from version 1.x or 2.x to version 3.0 is billable


IMPORTANT: Compatibility with Motion Control

It is essential to perform the software updates on the machine, i.e. the Connectivity Pack and Motion Control according to the following versions:

  • Connectivity pack: 3.0
  • SwissNano 4 Motion Control: 803
  • SwissNano 4 V2 Motion Control: 1009
  • SwissNano 7 Motion Control: 909
  • Swiss ST26 Motion Control: 28M
  • Swiss CT20 Motion Control: 803
  • Swiss GT13, GT26 & GT32 Motion Control: 803
  • SwissDT13 S Motion Control: 1203
  • SwissDT13 HP Motion Control: 1203
  • Swiss DT13 & DT26 Motion Control: 803
  • SwissDT26S Motion Control: 909
  • SwissDT26S V2 Motion Control: 1203
  • SwissDT26/5 HP Motion Control: 1109
  • SwissDT32 HP Motion Control: 1109
  • EvoDECO 10, 16, 20 & 32 Motion Control: 803
  • EvoDECO 10,16, 20 & 32 Optimove Motion Control : 909
  • SwissDECO 36 G, T & TB Motion Control: 909
  • SwissDECO 36 ISO G & T Motion Control: 1009

Please contact Tornos after-sales service for a motion control update.

TISIS

Novelties

  • SwissDT13 S ISO C
  • SwissDT13 S ISO A
  • SwissDT13 HP ISO C
  • SwissDT13 HP ISO A
  • SwissDT26 S II ISO C
  • SwissDT26 S II ISO A

Improvements

  • Ask "Save as" on machine change

Bugs fixes

  • Bug fixes in G42 for SwissDECO TB machine
  • Bug fixes in G73
  • Bug fixes in G903
  • Bug fixes in G920
  • Bug fixes in cylindrical interpolation
  • Bug fixes in 5 axes interpolator
  • Bug fixes on chamfer with W parameter
  • Bug fixes in 2D simulation in transmit mode with negative X axis
  • Bug fixes in partx file transfert throught the Connectivity Pack

Machines

All machines:

  • G964: add possibilities reduction ellipse precision (arg E0 and E-1)
  • G973 : bug fix and add mirror mode (arg J)
  • G974 : bug fix and add mirror mode (arg J)
  • G974 : correction engraving letter O longitudinal
  • G974: correction management space between two character and L argument

Optimove machines:

  • G933: correction dwell in end of threading if spindle rotation in M04
  • G933: correction arg K
  • G933 : Correction internal threading (arguments M and X)
    Please note that this may impact existing programs !
  • G943 : new buckets selector function
  • G9xx: Correction of the macros which use the positioning of the tool in X before the macro, to influence the behavior of the macro, when the inversion of programming direction X is active (X4 EvoDECO20/32). Examples: G933, G966,…
    Please note that this may impact existing programs !
  • Add M code M819 Mx My for setting number of parts by bucket by part program
  • Now, M32, M33, M34, M35, M36, M37 (sensors) are programable in all channels

SwissDECO36:

  • Correction of the direction of rotation of article N°248076 : Double front drill ER20
  • Correction of the speed ratio of article N°248608 : Double rotary drill ER16/ER25

EvoDECO16 Optimove:

  • Correction rotary axis name of tool spindle S41 (for G984)

EvoDECO20 and EvoDECO32 Optimove:

  • Now M80x Mx Mx + G947 (probing) are programming in all channels

EvoDECO20 Optimove:

  • Correction maximal bar diameter to 27mm

ISO Machines:

  • G800 : Fix limit soft on Z4 for part with several clamp (J) and part feeding excess (D)
  • G937 : Add new function Alternative Threading
  • G943: new buckets selector function
  • G977: Now in version Postprocessor
  • G978: new multiple threading function
  • G987: new machining at torque function
  • Macros PP : add restore modal functions G in end of macros

SwissNano4:

  • Updated image of article N°246664: 2 tools support plate
  • Updated image of article N°246665: 3 tools support plate

SwissNano7:

  • Add new article N°246664 : 2 tools support plate
  • Add new article N°246665 : 3 tools support plate
  • Add new article N° 248679: 4 tools support plate
  • Updated image of article N°246214: 6 tools support plate

SwissDT13e:

  • Update of S11 max speed to 8000 rpm and S51 to 10000 rpm

SwissDT13e ISO A:

  • Add Fix Guidebush mode
  • Change soft limit for Turning Guidebush to -365.5
  • Changed machine reference point Z1 to -325
  • Change soft limit for Z4 to -33.5 mm

SwissDT26 Line:

  • Change the default value of the Z4 torque limitation from 15% to 22% for all DT26 model programs at the part picking up

SwissDT26/5 ISO C:

  • Article Cutting Tool N°393846 as changed number to N°2052115
  • Article Hf spindle support Ø22 N°307249 as changed number to N°2052121
  • Article Hf spindle support Ø22 N°2023200 as changed number to N°2052122
  • Modification of the X geometries of article N° 396175: End tool unit (4 positions Ø22)
  • Modification of the X geometries X of Article No. 396176: End tool unit (4 positions Ø20)

SwissDT26 S:

  • Update tool location for article N° 2052109: 16x16 1 toolholder that only takes one Point of Fixation
  • Correction of the geometry for article N° 2052096: Tool holder plate 12x12 (5 positions)
  • Correction of the geometry for article N° 2052104: Tool holder plate 12x12 (6 positions)

SwissDT26 HP:

  • Update tool location for article N° 396198: 12x12 1 toolholder that only takes one Point of Fixation
  • Update tool location for article N° 396175 and 396176: Front tool unit 4 positions (4 x Ø22 +4 x Ø20) which occupies one more position (PF16 and PF17)
  • Updated default tool number for article N° 396155 + 396156 + 2052098 + 2052099: Front tool unit on PF19 position, which becomes T390 in OP and T490 in COP
  • Change article number for 398563 to 398537; 398564 to 398539; 2052115 to 393846; 2052121 to 307249 and 2052122 to 2023200
  • Add new article N° 388737: Triple rotary drill
  • Add new article N° 2020540 : End tool unit (4 positions Ø22)
  • Add an additional module to article N° 390241 and update the name: Tiltable Drill 0-90°
  • Add point fixation (PF11; PF12 and PF13) to article N° 2023200 : HF spindle support Ø22

SwissGT13:

  • Update of the article N°393822 : Adjustable (double) drilling 0° - 90°
  • Update of the article N°393823 : Adjustable (quadruple) drilling 0° - 90°
  • Correction to prohibit assembly of article no. 386251: Whirler 25° and no. 398541: Whirler 15° with other rotating tools
  • Add new article N° 2023200: HF spindle support Ø22

SwissGT26:

  • Modification of Z geometries for article N° 391401: End tool unit (5 positions Ø22).
  • Add new article N° 2023200: HF spindle support Ø22

SwissGT26 B axis V2:

  • Add new article N° 391401: End tool unit (5 positions Ø22)
  • Update tool location for article N° 2052109: 16x16 1 toolholder that only takes one Point of Fixation
  • Add new article N° 393810 : Double ended drill (ER11) in back operation P55 à PF58
  • Add new article N° 393811 : Extra double ended drill (ER11) in back operation P55 à PF58

SwissGT32:

  • Add new article N° 386251: Thread whirler 25°
  • Add new article N° 398541: Thread whirler 15°
  • Modification of Z geometries for article N° 391401: End tool unit (5 positions Ø22)
  • Add new article N° 2023200: HF spindle support Ø22

SwissGT32 B axis V2:

  • Add new article N° 391401: End tool unit (5 positions Ø22)
  • Update tool location for article N° 2052109: 16x16 1 toolholder that only takes one Point of Fixation
  • Add new article N° 393810 : Double ended drill (ER11) in back operation P55 à PF58
  • Add new article N° 393811 : Extra double ended drill (ER11) in back operation P55 à PF58

SwissST26:

  • G964 : Add Twister turning function

TISIS Pilot

TISIS novelties are included in TISIS Pilot (See above)

Novelties

  • Start at Block (SAB) for SwissDECO36 TB
  • ScreenShot function
  • Shutdown button

Improvement

  • Reduce time for opening a part program
  • Reduce part transfert time
  • Add scrollbar in MRU view on TCPV1
  • Improvements in calendar

Bug fixe

Features

Transfer of part programs onto the machine via the network (Connectivity Pack Option)

Transfer of tool catalogue (items) onto the machine via the network (Connectivity Pack Option)

PROGRAMMING

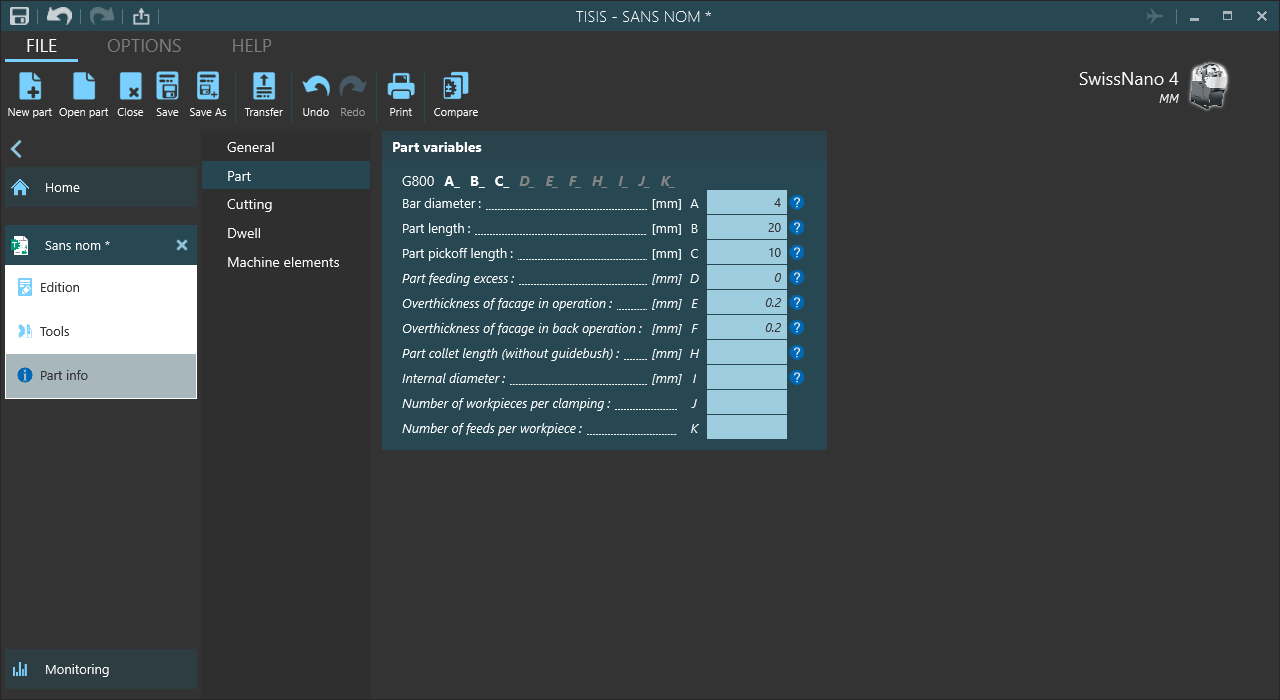

  • Simplified display of part information

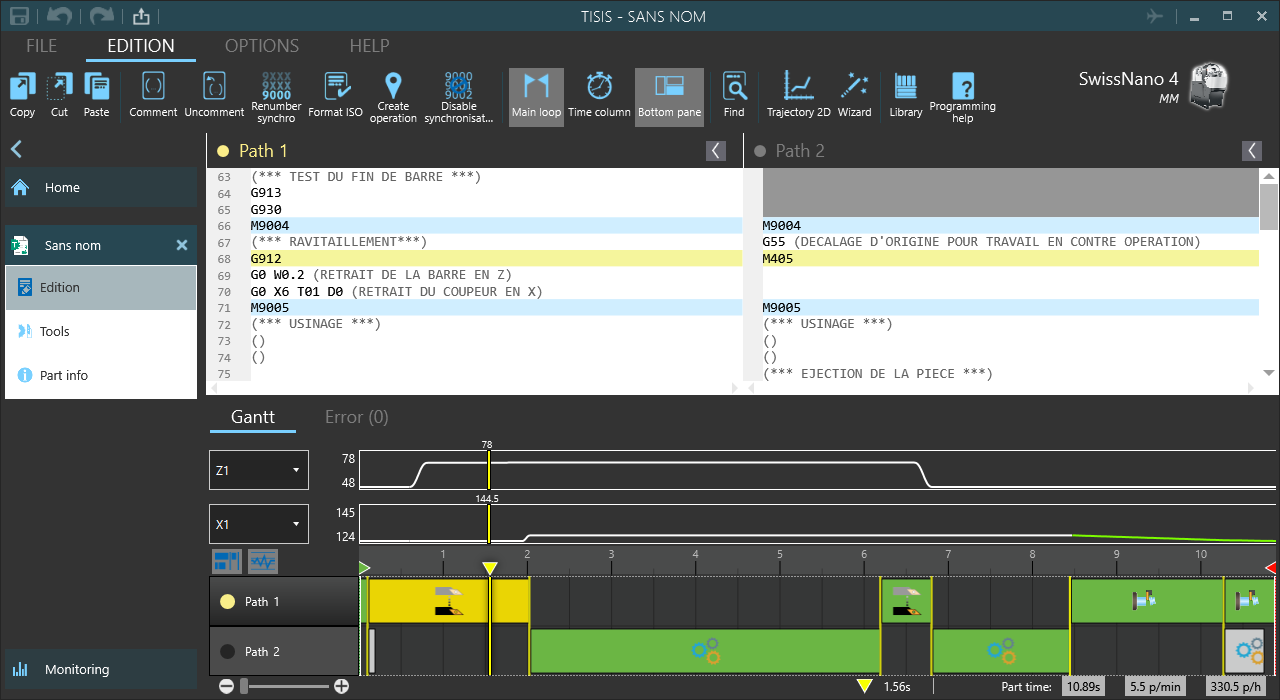

  • Vertical ISO code editor with syntax colouring
  • Part models and multilingual application
  • Synchronised ISO code display fluidity
  • Checking synchronisation errors
  • Print usual documents
  • File comparator
  • Calculation of the part duration and display of the time diagram
  • Programming help (ISO code)
  • Program edition from Gantt diagram

TOOL CATALOG

  • Simplified management of items/tool supports with graphical representation
  • Management of item/tool support incompatibilities
  • Default values of tool geometries
  • Simplified view of tools per channel
  • Assured compatibility of tool support (items) files (TAP extension) of machine tools.
  • Addition of new tool supports (items) via TSPK external file(s).

MONITORING (with connectivity pack)

  • View of complete machine fleet according to the machine type with the possibility to sort the displays:
    • Machine status (machine lamp copy)
    • Machines at end of production
  • View of production in progress for each machine:
    • Part counter, remaining production time and part name
    • Alarms and/or active messages
    • Part library with drawing and part op plan, images & documents for setup

PROBLEM(S)

If you had to encounter problem with the TISIS software, please use the mail address below:

Email : software@tornos.com. In order to reproduce the problem, we kindly ask you to give as many information as you can.

REQUEST(S) OR NEWS

Please use the email address software@tornos.com if you've got specific request (internal or external) about TISIS software
